Description
Features

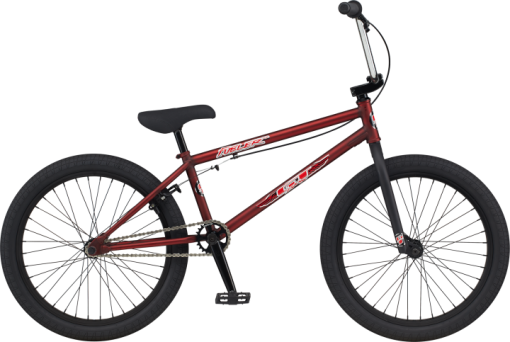

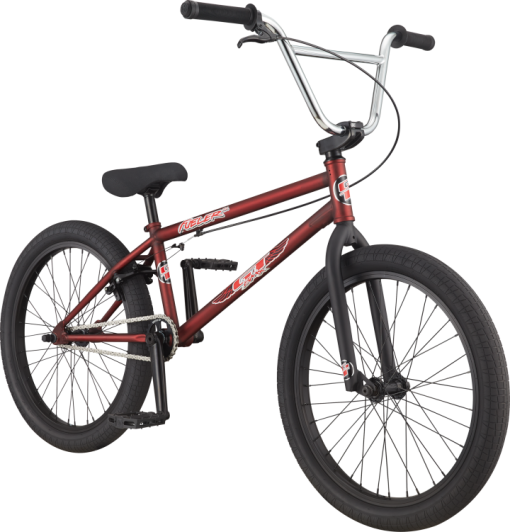

The Fueler 22″ has the same full Cr-Mo frame, fork and handlebar build as our highest end BMX models. Built around the new and popular 22″ wheels, it allows a rider to roll faster with more stablity than a traditional 20″ model while keeping the same playfulness we have come to expect from a modern BMX bike. While big riders love these bikes, they also are the perfect rig for a rider that wants to get back into BMX, but thinks a 20″ is just too small for them.
- Full Chromoly Frame
- 22” Wheels for increased speed and stability
- Translucent black camouflage finish
Additional Information
| Sizes | 22″ |
|---|---|
| Model Code | G48901U |
| Frame | Full Cr-Mo, DT Gusset, MID BB, Seat Stay U-Brake, Integrated 1-1/8″ H/T w/ Removable Rotor Tabs |
| Fork | 100% Cr-Mo 1pc. Threaded Steerer & Tapered Legs, 31mm OffSet, 3/8″ Axle Dropouts |
| Chain | KMC Z1 Wide |
| Crank | GT Power Series Seamless Tubular Cr-Mo 3pc., 170mm Arms, Cold Forged CR-MO 22mm x 48T Spline Spindle, GT 5mm 25T Alloy Chainwheel |
| Bottom Bracket | MID Sealed Bearing |
| Pedals | GT Low Profile FS Platform Design |
| Cog Set | 9T 1pc. Driver |
| Rims | Alloy Double Wall, 36h |
| Tires | Innova 22 x 2.3″ |
| Front Hub | Alloy Body, Sealed Bearings, 32h, 3/8″ x 17mm Female Bolt |
| Rear Hub | Alloy Body, 5pcs Sealed Bearings, Cr-Mo 14mm x 165mm Axle, 9T Cassette, 36h, 17mm Nut |
| Spokes | Stainless Steel, 14g |
| Brakes | Odyssey Springfield U-Brake |
| Front Brake | Odyssey Springfield U-Brake |
| Rear Brake | Odyssey Springfield U-Brake |
| Brake Levers | Alloy Hinged U-type |
| Handlebar | GT Freestyle 2pc. 100% Cr-Mo, 9″H x 29″W, 3° Up, 11° Back |
| Stem | GT Top Load, 1-1/8″, Cold Forged Cap, 32mm Rise, 50mm |
| Grips | GT Super Soft Flanged 155mm Single Compound w/ GT Removable Plug |
| Headset | 1 1/8″ Integrated Design, 45X45 Degree Sealed Bearings |
| Saddle | GT Pivotal Padded |
| Seat Post | Alloy Pivotal 25.4 x 200mm |
Geometry
